Complex Types in EF Core 8: What You Need to Know

Complex types in EF Core 8 map value objects, types with no identity of their own, directly into the owner's table as regular columns. They have no key and no navigation properties, so EF treats them as values rather than entities. In EF Core 8 a complex property is always required, and EF Core 10 added optional complex properties plus JSON mapping with collection support.

Value objects should be modeled by their value, not forced to pretend they have an identity. Here is how to configure, query, and update them, and what changed in EF Core 9 and 10.

What Are Complex Types?

Complex types model value objects, which are types defined by their properties rather than an identity. In the original EF Core 8 implementation, unlike owned types, complex types:

• Cannot be null
• Cannot have a primary key
• Cannot reference other entities (no navigation properties)
• Always live inside the parent entity's table

They map cleanly to the DDD concept of a value object.

Defining Complex Types

public sealed record Address(
    string Street,
    string City,
    string State,
    string ZipCode,
    string Country);

public sealed record Money(decimal Amount, string Currency);

public class Order
{
    public Guid Id { get; private set; }
    public Address ShippingAddress { get; set; } = null!;
    public Money TotalAmount { get; set; } = null!;
    public DateTime CreatedAt { get; private set; }
}

Configuration

Fluent API

modelBuilder.Entity<Order>(builder =>
{
    builder.HasKey(o => o.Id);

    builder.ComplexProperty(o => o.ShippingAddress, address =>
    {
        address.Property(a => a.Street)
            .HasColumnName("shipping_street")
            .HasMaxLength(200);

        address.Property(a => a.City)
            .HasColumnName("shipping_city")
            .HasMaxLength(100);

        address.Property(a => a.State)
            .HasColumnName("shipping_state")
            .HasMaxLength(100);

        address.Property(a => a.ZipCode)
            .HasColumnName("shipping_zip")
            .HasMaxLength(20);

        address.Property(a => a.Country)
            .HasColumnName("shipping_country")
            .HasMaxLength(100);
    });

    builder.ComplexProperty(o => o.TotalAmount, money =>
    {
        money.Property(m => m.Amount)
            .HasColumnName("total_amount")
            .HasPrecision(18, 2);

        money.Property(m => m.Currency)
            .HasColumnName("total_currency")
            .HasMaxLength(3);
    });
});

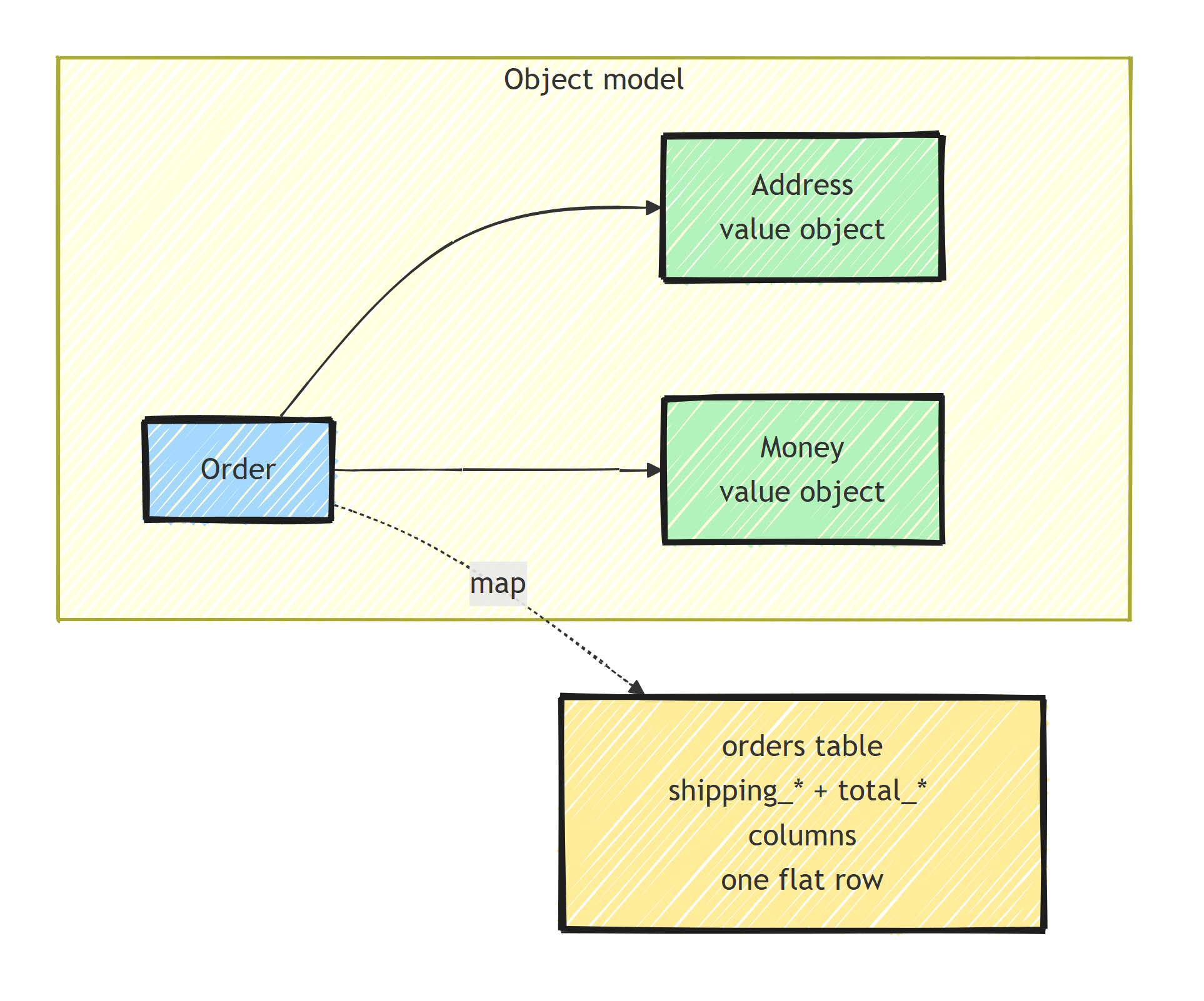

Generated Table

CREATE TABLE orders (
    id UUID PRIMARY KEY,
    shipping_street VARCHAR(200) NOT NULL,
    shipping_city VARCHAR(100) NOT NULL,
    shipping_state VARCHAR(100) NOT NULL,
    shipping_zip VARCHAR(20) NOT NULL,
    shipping_country VARCHAR(100) NOT NULL,
    total_amount DECIMAL(18,2) NOT NULL,
    total_currency VARCHAR(3) NOT NULL,
    created_at TIMESTAMP NOT NULL
);

The columns are NOT NULL because complex types cannot be null.

Nested Complex Types

Complex types can contain other complex types:

public sealed record Coordinates(double Latitude, double Longitude);

public sealed record Address(
    string Street,
    string City,
    string State,
    string ZipCode,
    string Country,
    Coordinates Location);

builder.ComplexProperty(o => o.ShippingAddress, address =>
{
    address.Property(a => a.Street).HasColumnName("shipping_street");
    address.Property(a => a.City).HasColumnName("shipping_city");
    // ...

    address.ComplexProperty(a => a.Location, location =>
    {
        location.Property(l => l.Latitude).HasColumnName("shipping_lat");
        location.Property(l => l.Longitude).HasColumnName("shipping_lng");
    });
});

All properties are still flattened into the same table.

Querying

You can filter by complex type properties just like regular columns:

// Find orders shipping to a specific city
var orders = await db.Orders
    .Where(o => o.ShippingAddress.City == "London")
    .ToListAsync();

// Find orders over a certain amount
var largeOrders = await db.Orders
    .Where(o => o.TotalAmount.Amount > 1000 &&
                o.TotalAmount.Currency == "USD")
    .ToListAsync();

EF Core translates this to standard SQL:

SELECT * FROM orders
WHERE shipping_city = 'London';

SELECT * FROM orders
WHERE total_amount > 1000 AND total_currency = 'USD';

Updating Complex Types

Replace the entire value object (the records here are immutable):

// ✅ Replace the whole value object
order.ShippingAddress = new Address(
    "456 Oak Ave",
    order.ShippingAddress.City,
    order.ShippingAddress.State,
    order.ShippingAddress.ZipCode,
    order.ShippingAddress.Country,
    order.ShippingAddress.Location);

await db.SaveChangesAsync();

With records, use the with expression:

order.ShippingAddress = order.ShippingAddress with { Street = "456 Oak Ave" };
await db.SaveChangesAsync();

EF Core detects which properties changed and only updates those columns.

Complex Types vs Owned Types

Here's how the two compare, feature by feature (in EF Core 8):

• Nullability: complex types can never be null; owned types can be optional
• Identity: complex types have no key at all; owned types carry a hidden shadow key
• Navigation properties: complex types can't reference entities; owned types can
• Separate table: complex types are always inlined into the parent table; owned types can move to their own table with ToTable()
• Collections: complex types don't support collections; owned types do via OwnsMany
• Version support: complex types need EF Core 8+; owned types have existed since EF Core 2.0
• Semantics: complex types are true value types; owned types are "entities pretending to be values"

I go deeper on the owned-type approach in value objects with EF Core.

When to Choose Complex Types

• You want value semantics with no identity or navigation
• You want the value flattened into the owner's table or, on EF Core 10, mapped to a JSON column
• You are on EF Core 8 or later and the version supports the nullability and collection shape you need

When to Choose Owned Types

• You need navigation properties to other entities
• You want to store the value in a separate table
• You need an owned collection mapped to its own table
• You are on EF Core 2-7

Multiple Entities With the Same Complex Type

public sealed record FullName(string First, string Last);

public class Customer
{
    public Guid Id { get; set; }
    public FullName Name { get; set; } = null!;
    public Address BillingAddress { get; set; } = null!;
}

public class Supplier
{
    public Guid Id { get; set; }
    public FullName ContactName { get; set; } = null!;
    public Address WarehouseAddress { get; set; } = null!;
}

Configure each independently:

modelBuilder.Entity<Customer>(builder =>
{
    builder.ComplexProperty(c => c.Name, name =>
    {
        name.Property(n => n.First).HasColumnName("first_name");
        name.Property(n => n.Last).HasColumnName("last_name");
    });
    builder.ComplexProperty(c => c.BillingAddress, addr =>
    {
        addr.Property(a => a.Street).HasColumnName("billing_street");
        addr.Property(a => a.City).HasColumnName("billing_city");
    });
});

modelBuilder.Entity<Supplier>(builder =>
{
    builder.ComplexProperty(s => s.ContactName, name =>
    {
        name.Property(n => n.First).HasColumnName("contact_first_name");
        name.Property(n => n.Last).HasColumnName("contact_last_name");
    });
    builder.ComplexProperty(s => s.WarehouseAddress, addr =>
    {
        addr.Property(a => a.Street).HasColumnName("warehouse_street");
        addr.Property(a => a.City).HasColumnName("warehouse_city");
    });
});

Limitations

Complex types in EF Core 8 have restrictions:

1. Cannot be null - use owned types if nullability is needed
2. No collections - use OwnsMany for lists of value objects
3. No lazy loading - they're always loaded with the parent
4. No separate table - always in the same table as the entity
5. Equality not used by EF Core - change detection is property-by-property, not structural equality

What Changed in EF Core 9 and 10

Complex types were a v1 feature in EF Core 8, and the team has been closing the gaps since:

• EF Core 10 added support for optional (nullable) complex properties when the complex type contains at least one required property
• EF Core 10 made complex types the primary mechanism for mapping to JSON columns, which previously required owned types with ToJson()
• Complex type collections are supported when mapped to JSON

If you're on .NET 10, the "use owned types because complex types can't do X" cases have mostly disappeared. Check the EF Core release notes for your exact version before designing around an EF Core 8 limitation.

Summary

Complex types express values with no identity or navigation and keep their members queryable through LINQ. EF Core 8 maps required values into the owner's table; EF Core 10 adds optional complex properties and JSON mapping that can contain collections. Use owned types when you need an entity relationship, a separate table, or support on an older EF Core version.
